Introduction to ForgeRock DevOps – Part 2 – Building Docker Containers

We have just launched Version 5 of the ForgeRock Identity Platform with numerous enhancements for DevOps friendliness. I have been meaning to jump into the world of DevOps for some time so the new release afforded a great opportunity to do just that.

Catch up with previous entries in the series:
http://identity-implementation.blogspot.co.uk/2017/04/introduction-to-forgerock-devops-part-1.html

I will be using IBM Bluemix here as I have recent experience of it but nearly all of the concepts will be similar for any other cloud environment.

Building Docker Containers

In this blog we are going to build our docker containers that will contain the ForgeRock platform components, tag them and upload them to the Bluemix registry.

Prerequisites

Install all of the below:

Docker: https://www.docker.com
Used to build, tag and upload docker containers.
Bluemix CLI: http://clis.ng.bluemix.net/ui/home.html
Used to deploy and configure the Bluemix environment.
CloudFoundry CLI: https://github.com/cloudfoundry/cli
Bluemix dependency.
Kubectl: https://kubernetes.io/docs/tasks/tools/install-kubectl/

Deploy and manage Kubernetes clusters.

Initial Configuration

1. Log in to the Blue Mix CLI using you Blue Mix account credentials:

bx login -a https://api.ng.bluemix.net

Note we are using the US instance of Bluemix here as it has support for Kubernetes in beta.

When prompted to select an account ( just type 1) and if you are logged in successfully you should see the above. Now you can interact with the Bluemix environment just as you might if you were logged in via a browser.

2. Add the Bluemix Docker components:

bx plugin repo-add Bluemix https://plugins.ng.bluemix.netbx plugin install container-service -r Bluemix
bx plugin install IBM-Containers -r Bluemix

Check they have installed:

bx plugin list

3. Clone (or download) the ForgeRock Docker Repo to somewhere local:

https://stash.forgerock.org/projects/DOCKER/repos/docker/browse

4. Download the ForgeRock AM and DS component binaries from backstage:

https://backstage.forgerock.com/downloads

5. Unzip and copy ForgeRock binaries into the Docker build directories:

AM:

unzip AM-5.0.0.zip
cp openam/AM-5.0.0.war /usr/local/DevOps/stash/docker/openam/

DJ:

mv DS-5.0.0.zip /usr/local/DevOps/stash/docker/openam/opendj.zipcp openam/AM-5.0.0.war /usr/local/DevOps/stash/docker/openam/

Amster:

mv Amster-5.0.0.zip /usr/local/DevOps/stash/docker/amster/amster.zip

For those unfamiliar, Amster is our new RESTful configuration tool for AM in the 5 platform, replacing SSOADM with a far more DevOps friendly tool, I’ll be covering it in a future blog.

Build Containers

We are going to create three containers: AM, DJ & Amster:

1. Build and Tag OpenAM container ( don’t forget the . ) :

cd /usr/local/DevOps/stash/docker/openam
docker build -t wayneblacklockfr/openam .

Note wayneblacklockfr/openam is just a name to tag the container with locally, replace it with whatever you like but keep the /openam.

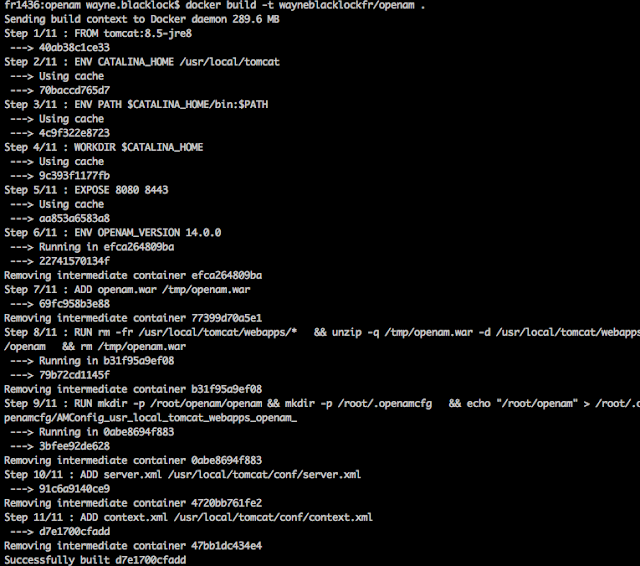

All being well you will see something like the below:

Congratulations, you have built your first ForgeRock container!

Now we need to get the namespace for tagging, this is usually your username but check using:

bx ic namespace-get

Now lets tag it ready for upload to Bluemix, use the container ID output at the end of the build process and your namespace

docker tag d7e1700cfadd registry.ng.bluemix.net/wayneblacklock/openam:14.0.0

Repeat the process for Amster and DS.

2. Build and Tag Amster container:

cd /usr/local/DevOps/stash/docker/amster
docker build -t wayneblacklockfr/amster .
docker tag 54bf5bd46bf1 registry.ng.bluemix.net/wayneblacklock/amster:14.0.0

3. Build and Tag DS container:

cd /usr/local/DevOps/stash/docker/opendj
docker build -t wayneblacklockfr/opendj .
docker tag 19b8a6f4af73 registry.ng.bluemix.net/wayneblacklock/opendj:4.0.0

4. View the containers:

You can take a look at what we have built with: docker images

Push Containers

Finally we want to push our containers up to the Bluemix registry.

1. Login again:

bx login -a https://api.ng.bluemix.net

2. Initiate the Bluemix container service, this may take a moment:

bx ic init

Ignore Option 1 & Option 2, we are not doing either.

3. Push your Docker images up to Bluemix:

docker push registry.ng.bluemix.net/wayneblacklock/openam:14.0.0

docker push registry.ng.bluemix.net/wayneblacklock/amster:14.0.0

docker push registry.ng.bluemix.net/wayneblacklock/opendj:4.0.0

4. Confirm your images have been uploaded:

bx ic images

If you login to the Bluemix webapp you should be able to see your containers in the catalog:

Next Time

We will take a look at actually deploying a Kubernetes cluster and everything we have to do to ready our containers for deployment.

This blog post was first published @ http://identity-implementation.blogspot.no/, included here with permission from the author.

FranceConnect authentication and registration in ForgeRock AM 5

FranceConnect is the French national Identity Provider (IDP). This IDP acts as a hub that is connected to third party IDPs: La Poste (Mail service), Ameli (Health agency) , impots.gouv.fr (Tax service). National IDP is not a new concept in Europe where the eIDAS regulation applied for years, for example Fedict in Belgium or gov.uk in UK. Whereas the National IDPs are mostly SAML based (some of them uses the Stork profile) the FranceConnect service is OpenID Connect based.

ForgeRock is a FranceConnect partner.

This article explains the FranceConnect implementation in ForgeRock Access Manager 5.0

First creates an account on FranceConnect here https://partenaires.franceconnect.gouv.fr/monprojet/inscription, it takes few minutes.

The only information needed is the callback URL, for example: http://openam.example.com/openam/oauth2c/OAuthProxy.jsp

The clientID « key » and the client secret « secret » will be sent by email.

Then the configuration is done in the admin console of the ForgeRock AM.

Go to Authentication>Modules and create a new OAuth 2.0 / OpenID Connect authentication module.

This configuration maps the user using the email attribute, automatically creates the user in the datastore (optional).

The following attributes have been mapped: given_name=givenname family_name=sn email=mail. The full FranceConnect attribute list is here: https://partenaires.franceconnect.gouv.fr/fournisseur-service

Go to Authentication>Chains and create a new authentication chain FranceConnectNationalAuthenticationService which contains the FranceConnect authentication module as required.

In order to activate the FranceConnect button add it in Services>Social Authentication Implementations.

Lets try!

Go to the login page.

Choose « s’identifier avec FranceConnect »

Example account are provided for major IDP.

Choose the Ameli.fr IDP; example account is login : 18712345678912345 and password :123

The account is stored in the AM datastore.

You are now logged in with Mr Eric Mercier!

A Design for Modern Authentication

The password is dead. Long live the password! I have lost count of how many articles and blogs I have seen with regards to the weaknesses, the management, the flexibility, security, insecurity and overall usage of passwords when it comes to user authentication. We all use them and they’re not going anywhere any time soon. OK, so next step. What else can and should we be using for our user and device based authentication and login journeys?


Where We Are Now – The Sticking Plaster of MFA


So we accept that the traditional combo of user name and passwords is bad for our (system) health. Step forward multi-factor authentication. Or 2FA. Take your pick. This generally saw the introduction of something you have in the form of a token, phone-as-a-token or some other out of band mechanism that would create a one-time-password. Traditionally the “out of band” mechanism was either an email or SMS to a preregistered address or phone number, that contained a 6 digit pass code. Internal or employee systems would often leverage a hard token – either a USB dongle or a small tag with a tiny display that would show a rotating pin. These concepts were certainly better from a security perspective, but a) were not unbreakable and b) often created a disjointed user login experience with lots on interruptions and user interaction.

Basic MFA factors


Where We Are Moving To – Nano Authentication!


OK, so user name and passwords are not great. MFA is simple, pretty cheap to implement, but means either the end user needs to carry something around (a bit 2006) or has an interrupted login journey by constantly being asked for a one-time-password. What we need is not two-factor-authentication but more nano-factor-authentication! More factors that are smaller.  At least 10 to be precise. Increase the factors and aim to reduce the material impact of a single factor compromise whilst simultaneously reducing the number of user interrupts. These 10 factors (it could be 8, it could be 15, you get the idea) are all about introducing a broad spectrum analysis for the login journey.

Each factor is must more cohesive and modular, analysing a single piece of the login journey. The login journey could still leverage pretty static profile related data such as a user name, but is augmented with much more context – the location, time, device origin of the request and comparison factors that look at previous login requests to determine patterns or abnormalities.

Breaking authentication down? "Nano-authentication"

Some of these factors could “pass” and some could “fail” during the login journey, but the process is much about about accumulating and analysing risk and therefore being able to respond to high risk more accurately. Applying 2FA to every user login does not reduce risk per-se, it simply applies a blanket risk to every actor.

Wouldn’t it be much better to allow login variation for genuine users who do regularly change machine, location, network and time zone? Wouldn’t it be better to give users more choice over their login journeys and provide numerous options if and when high risks scenarios do occur?

 Another key area I think authentication is moving towards, is that of transparency. “Frictionless”, “effortless” or “zero-effort” logins are all the buzz. If, as an end user I enrol, sacrifice the privacy regarding a device fingerprint, maybe download a OTP or push app, why can’t I just “login” without having my experience interrupted? The classic security/convenience paradox. By introducing more factors and “gluing” those factors together with processing logic, the user authentication system can be much more responsive – perhaps mimicking a state machine, designed in a non-deterministic fashion, where any given factor could have multiple outcomes.

Where We Want To Get To – Transparent Pre-Authentication


So I guess the sci-fi end goal is to just turn up at work/coffee shop/door/car/website/application (delete as applicable) and just present one selves. The service would not only “know” who you were, but also trust that it is you. A bit like the Queen. Every time you presented yourself, transparent background checks would continually evaluate every part of the interaction, looking for changes and identifying risk.

Session + Bind + Usage - increasing transparency?


The closest we are to that today in the web world at least, is the exchange of the authentication process for a cookie/session/tokenId/access_token. Whether that is stateless or stateful, it’s something to represent the user when they attempt to gain access to the service again. Couple that token to some kind of binding (either to a PKI key pair, or TLS session) to reduce the impact of token theft and there is some kind of repeatable access use case. However, change is all around and the token presentation, must therefore be coupled with all usage, context, resource and transaction data that the token is attempting to access, to allow the authentication machine to loop through the necessary nano-factors either individually or collectively to identify risk or change.

Authentication is moving on.  A more modern system must accommodate a broad spectrum  when it comes to analysing who is instigating a transaction which must also be coupled with mechanisms that increase transparency and pre-identification of risk without unnecessary and obtrusive interruptions.

A Design for Modern Authentication

The password is dead. Long live the password! I have lost count of how many articles and blogs I have seen with regards to the weaknesses, the management, the flexibility, security, insecurity and overall usage of passwords when it comes to user authentication. We all use them and they’re not going anywhere any time soon. OK, so next step. What else can and should we be using for our user and device based authentication and login journeys?

Where We Are Now – The Sticking Plaster of MFA

So we accept that the traditional combo of user name and passwords is bad for our (system) health. Step forward multi-factor authentication. Or 2FA. Take your pick. This generally saw the introduction of something you have in the form of a token, phone-as-a-token or some other out of band mechanism that would create a one-time-password. Traditionally the “out of band” mechanism was either an email or SMS to a preregistered address or phone number, that contained a 6 digit pass code. Internal or employee systems would often leverage a hard token – either a USB dongle or a small tag with a tiny display that would show a rotating pin. These concepts were certainly better from a security perspective, but a) were not unbreakable and b) often created a disjointed user login experience with lots on interruptions and user interaction.

Basic MFA factors

Where We Are Moving To – Deca-factor Authentication!

OK, so user name and passwords are not great. MFA is simple, pretty cheap to implement, but means either the end user needs to carry something around (a bit 2006) or has an interrupted login journey by constantly being asked for a one-time-password. What we need is not two-factor-authentication but deca-factor-authentication! More factors. At least 10 to be precise. Increase the factors and aim to reduce the material impact of a single factor compromise whilst simultaneously reducing the number of user interrupts. These 10 factors (it could be 8, it could be 15, you get the idea) are all about introducing a broad spectrum analysis for the login journey.

Each factor is must more cohesive and modular, analysing a single piece of the login journey. The login journey could still leverage pretty static profile related data such as a user name, but is augmented with much more context – the location, time, device origin of the request and comparison factors that look at previous login requests to determine patterns or abnormalities.

Breaking authentication down? “Deca-factors”

Some of these factors could “pass” and some could “fail” during the login journey, but the process is much about about accumulating and analysing risk and therefore being able to respond to high risk more accurately. Applying 2FA to every user login does not reduce risk per-se, it simply applies a blanket risk to every actor.

Wouldn’t it be much better to allow login variation for genuine users who do regularly change machine, location, network and time zone? Wouldn’t it be better to give users more choice over their login journeys and provide numerous options if and when high risks scenarios do occur?

Another key area I think authentication is moving towards, is that of transparency. “Frictionless”, “effortless” or “zero-effort” logins are all the buzz. If, as an end user I enrol, sacrifice the privacy regarding a device fingerprint, maybe download a OTP or push app, why can’t I just “login” without having my experience interrupted? The classic security/convenience paradox. By introducing more factors and “gluing” those factors together with processing logic, the user authentication system can be much more responsive – perhaps mimicking a state machine, designed in a non-deterministic fashion, where any given factor could have multiple outcomes.

Where We Want To Get To – Transparent Pre-Authentication

So I guess the sci-fi end goal is to just turn up at work/coffee shop/door/car/website/application (delete as applicable) and just present one selves. The service would not only “know” who you were, but also trust that it is you. A bit like the Queen. Every time you presented yourself, transparent background checks would continually evaluate every part of the interaction, looking for changes and identifying risk.

Session + Bind + Usage – increasing transparency?

The closest we are to that today in the web world at least, is the exchange of the authentication process for a cookie/session/tokenId/access_token. Whether that is stateless or stateful, it’s something to represent the user when they attempt to gain access to the service again. Couple that token to some kind of binding (either to a PKI key pair, or TLS session) to reduce the impact of token theft and there is some kind of repeatable access use case. However, change is all around and the token presentation, must therefore be coupled with all usage, context, resource and transaction data that the token is attempting to access, to allow the authentication machine to loop through the necessary deca-factors either individually or collectively to identify risk or change.

Authentication is moving on.  A more modern system must accommodate a broad spectrum  when it comes to analysing who is instigating a transaction which must also be coupled with mechanisms that increase transparency and pre-identification of risk without unnecessary and obtrusive interruptions.

This blog post was first published @ www.infosecprofessional.com, included here with permission.

A Design for Modern Authentication

The password is dead. Long live the password! I have lost count of how many articles and blogs I have seen with regards to the weaknesses, the management, the flexibility, security, insecurity and overall usage of passwords when it comes to user authentication. We all use them and they’re not going anywhere any time soon. OK, so next step. What else can and should we be using for our user and device based authentication and login journeys?


Where We Are Now – The Sticking Plaster of MFA


So we accept that the traditional combo of user name and passwords is bad for our (system) health. Step forward multi-factor authentication. Or 2FA. Take your pick. This generally saw the introduction of something you have in the form of a token, phone-as-a-token or some other out of band mechanism that would create a one-time-password. Traditionally the “out of band” mechanism was either an email or SMS to a preregistered address or phone number, that contained a 6 digit pass code. Internal or employee systems would often leverage a hard token – either a USB dongle or a small tag with a tiny display that would show a rotating pin. These concepts were certainly better from a security perspective, but a) were not unbreakable and b) often created a disjointed user login experience with lots on interruptions and user interaction.

Basic MFA factors


Where We Are Moving To – Nano Authentication!


OK, so user name and passwords are not great. MFA is simple, pretty cheap to implement, but means either the end user needs to carry something around (a bit 2006) or has an interrupted login journey by constantly being asked for a one-time-password. What we need is not two-factor-authentication but more nano-factor-authentication! More factors that are smaller.  At least 10 to be precise. Increase the factors and aim to reduce the material impact of a single factor compromise whilst simultaneously reducing the number of user interrupts. These 10 factors (it could be 8, it could be 15, you get the idea) are all about introducing a broad spectrum analysis for the login journey.

Each factor is must more cohesive and modular, analysing a single piece of the login journey. The login journey could still leverage pretty static profile related data such as a user name, but is augmented with much more context – the location, time, device origin of the request and comparison factors that look at previous login requests to determine patterns or abnormalities.

Breaking authentication down? "Nano-authentication"

Some of these factors could “pass” and some could “fail” during the login journey, but the process is much about about accumulating and analysing risk and therefore being able to respond to high risk more accurately. Applying 2FA to every user login does not reduce risk per-se, it simply applies a blanket risk to every actor.

Wouldn’t it be much better to allow login variation for genuine users who do regularly change machine, location, network and time zone? Wouldn’t it be better to give users more choice over their login journeys and provide numerous options if and when high risks scenarios do occur?

 Another key area I think authentication is moving towards, is that of transparency. “Frictionless”, “effortless” or “zero-effort” logins are all the buzz. If, as an end user I enrol, sacrifice the privacy regarding a device fingerprint, maybe download a OTP or push app, why can’t I just “login” without having my experience interrupted? The classic security/convenience paradox. By introducing more factors and “gluing” those factors together with processing logic, the user authentication system can be much more responsive – perhaps mimicking a state machine, designed in a non-deterministic fashion, where any given factor could have multiple outcomes.

Where We Want To Get To – Transparent Pre-Authentication


So I guess the sci-fi end goal is to just turn up at work/coffee shop/door/car/website/application (delete as applicable) and just present one selves. The service would not only “know” who you were, but also trust that it is you. A bit like the Queen. Every time you presented yourself, transparent background checks would continually evaluate every part of the interaction, looking for changes and identifying risk.

Session + Bind + Usage - increasing transparency?


The closest we are to that today in the web world at least, is the exchange of the authentication process for a cookie/session/tokenId/access_token. Whether that is stateless or stateful, it’s something to represent the user when they attempt to gain access to the service again. Couple that token to some kind of binding (either to a PKI key pair, or TLS session) to reduce the impact of token theft and there is some kind of repeatable access use case. However, change is all around and the token presentation, must therefore be coupled with all usage, context, resource and transaction data that the token is attempting to access, to allow the authentication machine to loop through the necessary nano-factors either individually or collectively to identify risk or change.

Authentication is moving on.  A more modern system must accommodate a broad spectrum  when it comes to analysing who is instigating a transaction which must also be coupled with mechanisms that increase transparency and pre-identification of risk without unnecessary and obtrusive interruptions.

SAML2 IDP Automated Certificate Management in FR AM

ForgeRock AM 5.0 ships with Amster a lightweight command line tool and interactive shell, that allows for the automation of many management and configuration tasks.

A common task often associated with SAML2 identity provider configs, is the updating of certificates that are used for signing and the possible encryption of assertions.  A feature added in 13.0 of OpenbAM, was the ability to have multiple certificates within an IDP config.  This is useful to overcome the age old challenge of how to handle certificate expiration.  An invalid cert can brake integrations with service providers.  The process to remove, then add a new certificate, would require any entities within the circle of trust to retrieve new metadata into their configs – and thus create downtime, so the timing of this is often an issue.  The ability to have multiple certificates in the config, would allow service providers to pull down meta data at a known date, instead of specifically when certificates expired.

Here we see the basic admin view of the IDP config…showing the list of certs available.  These certs are stored in the JCEKS keystore in AM5.0 (previously the JKS keystore).

So the config contains am1 and am2 certs – an export of the meta data (from the ../openam/saml2/jsp/exportmetadata.jsp?entityid=idp endpoint) will list both certs that could be used for signing:

The first certificate listed in the config, is the one that is used to sign.  When that expires, just remove from the list and the second certificate is then used.  As the service provider already has both certs in their originally downloaded metadata, there should be no break in service.

Anyway….back to automation.  Amster can manage the the SAML2 entities, either via the shell or script.  This allows admins to operationally create, edit and update entities…and a regular task could be to add new certificates to the IDP list as necessary.

To do this I created a script that does just this.  It’s a basic bash script that utilises Amster to read, edit then re-import the entity as a JSON wrapped XML object.

The script is available here.

For more information on IDP certificate management see the docs here.

This blog post was first published @ http://www.theidentitycookbook.com/, included here with permission from the author.

Extending OpenAM HOTP module to display OTP delivery details

OpenAM provide HOTP authentication module which can send OTP to user’s email address and/or telephone number. By default, OpenAM doesn’t displays user’s email address and/or telephone number while sending this OTP.

Solution

Versions used for this implementation: OpenAM 13.5, OpenDJ 3.5
One of the solution can include extending out of the box OpenAM’s HOTP module:
  • Extend HOTP auth module (openam-auth-hotp).
  • Update below property in extended amAuthHOTP.properties: send.success=Please enter your One Time Password sent at
  • Extend HOTPService appropriately to retrieve user profile details.
  • Change extended HOTP module code as per below (both for auto send and on request):

substituteHeader(START_STATE, bundle.getString("send.success") + <Get User contact details from HOTPService>);

Deploy

Register service and module (Note that for OpenAM v12 use amAuthHOTPExt-12.xml) :
$ ./ssoadm create-svc --adminid amadmin --password-file /tmp/pwd.txt --xmlfile ~/softwares/amAuthHOTPExt.xml
$ ./ssoadm register-auth-module --adminid amadmin --password-file /tmp/pwd.txt --authmodule com.sun.identity.authentication.modules.hotp.HOTPExt

UnRegister service and module (in case module needs to be uninstalled) :
$ ./ssoadm unregister-auth-module --adminid amadmin --password-file /tmp/pwd.txt --authmodule com.sun.identity.authentication.modules.hotp.HOTPExt
$ ./ssoadm delete-svc --adminid amadmin --password-file /tmp/pwd.txt -s sunAMAuthHOTPExtService
  • Configure HOTPExt module with required SMTP server. Enable both SMS and Email.
  • Create a chain(otpChain) with (LDAP:Required, HOTPExt:Required). Set this chain as default for “Organization Authentication”
  • Restart OpenAM
  • Invoke HOTP module and appropriate message is displayed on screen with user’s email address and/or telephone number:



This blog post was first published @ theinfinitelooper.blogspot.com, included here with permission.

OpenAM SP SAML Attribute Mapper extension for updating profile attributes

OpenAM can act as both SP and IdP for SAML webSSO flows. OpenAM also provides ability to dynamically create user profiles.

When OpenAM is acting as SAML SP and Dynamic user profile is enabled, if user profile doesn’t exist on OpenAM then OpenAM dynamically creates this profile from attributes in SAML assertion.
The problem comes if user profile is updated at IdP side, all subsequent SAML webSSO flows doesn’t update these changes at OpenAM SP side. More details here: OPENAM-8340

Solution

Versions used for this implementation: OpenAM 13.5, OpenDJ 3.5

One of the solution can include extending OpenAM SP Attribute Mapper. This extension may include just checking if user profile exists in OpenAM SP and updating any modified or new attributes in OpenAM datastore. Some tips for this implementation:

  1. Extend DefaultSPAttributeMapper and override getAttributes()
  2. Get datastore provider from SAML2Utils.getDataStoreProvider()
  3. Check if user exists: dataStoreProvider.isUserExists(userID)
  4. Get existing user attributes: dataStoreProvider.getAttributes()
  5. Compare attributes in SAML assertion with existing user attributes.
  6. Finally persist any new and updated attributes: dataStoreProvider.setAttributes()

Deploy

  • Compile and deploy this extension in OpenAM under  (OpenAM-Tomcat)/webapps/openam/WEB-INF/lib
  • Change SAML attribute setting in OpenAM. Navigate to Federation > Entity Providers > (SP Hosted Entity) > Assertion Processing. Specify ‘org.forgerock.openam.saml2.plugins.examples.UpdateDynamicUserSPAttMapper’ under Attribute Mapper.
  • Restart OpenAM
  • And we are good to go! Any changes in user profile attributes in SAML assertion will now be persisted in OpenAM datastore.

Note that ideally attributes between different sources should be synced by using some tool like OpenIDM

See Also

Get code: https://github.com/CharanMann/OpenAM-SAMLSP-updateDynamicUser
OpenAM User Profile settings: https://backstage.forgerock.com/docs/openam/13.5/admin-guide#auth-core-realm-attributes
OpenAM SAML configuration: https://backstage.forgerock.com/docs/openam/13.5/admin-guide#chap-federation

This blog post was first published @ theinfinitelooper.blogspot.com, included here with permission.

Introduction to ForgeRock DevOps – Part 1

We have just launched Version 5 of the ForgeRock Identity Platform with numerous enhancements for DevOps friendliness. I have been meaning to jump into the world of DevOps for some time so the new release afforded a great opportunity to do just that.

As always with this blog I am going to step through a fully worked example. In this case I am using IBM Bluemix however it could just as easily have been AWS, Azure. GKE or any service that supports Kubernetes. By the end of this blog you will have a containerised instance of ForgeRock Access Management and Directory Services running on Bluemix deployed using Kubernetes. First off we will cover the basics.

DevOps Basics

There are many tutorials out there introducing dev ops that do a great job so I am not going to repeat those here I will point you towards the excellent ForgeRock Platform 5 DevOps guide which also takes you through DevOps deployment step by step into Minikube or GKE:

https://backstage.forgerock.com/docs/platform/5/devops-guide

What I want to do briefly is touch on some of the key ideas that really helped me to understand DevOps. I do not claim to be an expert but I think I am beginning to piece it all together:

12 Factor Applications: Best practices for developing applications, superbly summarised here this is why we need containers and DevOps.

Docker: Technology for building, deploying and managing containers.

Containers: A minimal operating system and components necessary to host an application. Traditionally we host apps in virtual machines with full blown operating systems whereas containers cut all of that down to just what you need for the application you are going to run.

In docker containers are built from Dockerfiles which are effectively recipes for building containers from different components. e.g. a recipe for a container running Tomcat.

Container Registry: A place where built containers can be uploaded to, managed, downloaded and deployed from. You could have a registry running locally, cloud environments will also typically have registries they will use to retrieve containers at deployment time.

Kubernetes: An engine for orchestrating deployment of containers. Because containers are very minimal, they need to have extra elements provisioning such as volume storage, secrets storage and configuration. In addition when you deploy any application you need load balancing and numerous other considerations. Kubernetes is a language for defining all of these requirements and an engine for implementing them all.

In cloud environments such as AWS, Azure and IBM Bluemix that support Kubernetes this effectively means that Kubernetes will manage the configuration of the cloud infrastructure for you in effect abstracting away all of the usual configuration you have to do specific to these environments.

Storage is a good example, in Kubernetes you can define persistent volume claims, this is effectively a way of asking for storage. Now with Kubernetes you do not need to be concerned with the specifics of how this storage is provisioned. Kubernetes will do that for you regardless of whether you deploy onto AWS, Azure, IBM Bluemix.

This enables automated and simplified deployment of your application to any deployment environment that supports Kubernetes! If you want to move from one environment to another just point your script at that environment! More so Kubernetes gives you a consistent deployment management and monitoring dashboard across all of these environments!

Helm: An engine for scripting Kubernetes deployments and operations. The ForgeRock platform uses this for DevOps deployment. It simply enables scripting of Kubernetes functionality and configuration of things like environment variables that may change between deployments.

The above serves as a very brief introduction to the world of DevOps and helps to set the scene for our deployment.

If you want to following along with this guide please get yourself a paid IBM Bluemix account alternatively if you want to use GKE or Minikube ( for local deployment ) take a look at the superb ForgeRock DevOps Guide. I will likely cover off Azure and AWS deployment in later blogs however everything we talk about here will still be relevant for those and other cloud environments as after all that is the whole point of Kubernetes!

In Part 2 we will get started by installing some prerequisites and building our first docker containers.

This blog post was first published @ http://identity-implementation.blogspot.no/, included here with permission from the author.
